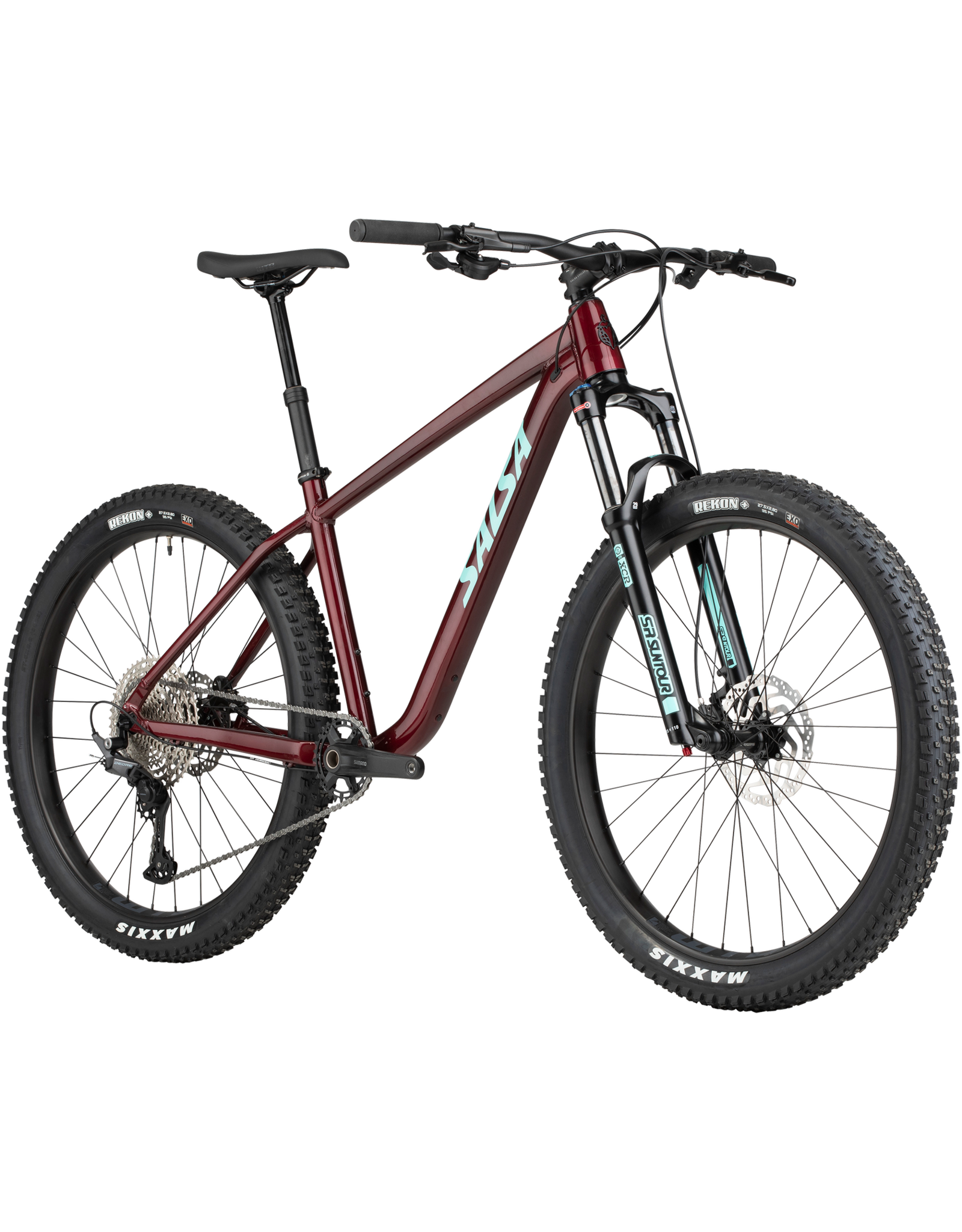

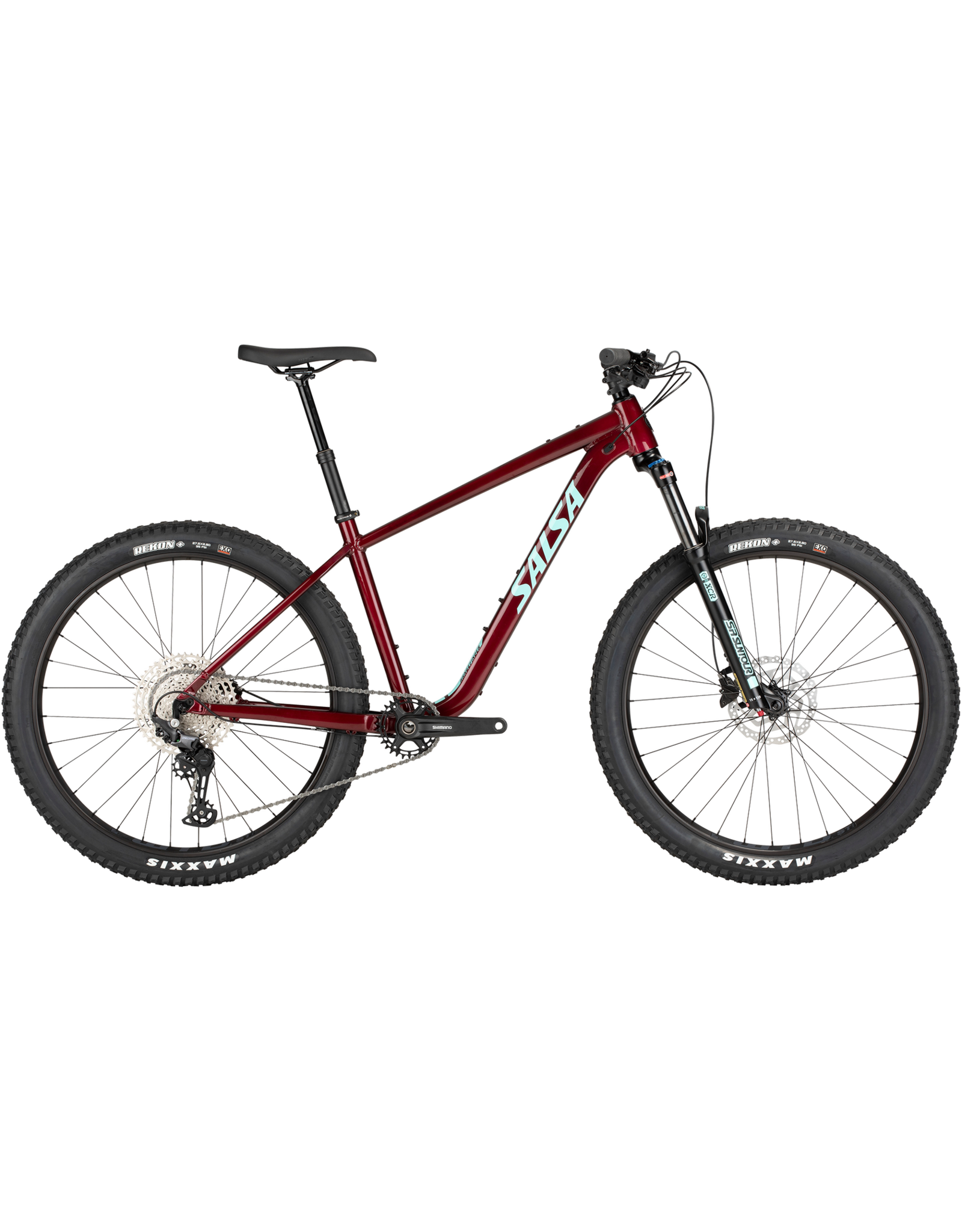

SALSA RANGEFINDER DEORE 12SP
Reg. $1,500, SALE: $1,185
Rangefinder Deore 12 27.5+ is here to help you find your new favorite trail, with a features list that makes it one of the best 27.5 hardtail trail bike options for the money. Our stable trail geometry puts you in a comfortable, confident position to take on new terrain and experiences. A 120 mm suspension fork and dropper post keep you in control. Nimble 27.5” wheels accelerate quickly, while the 2.8”-wide tires deliver awesome grip. Shimano’s Deore 12-speed build kit gives you plenty of range for taking on steep climbs, speedy flats, or anything in between.
Build Kit
Frameset
-
Frame
Rangefinder Aluminum
-
Color
Dark Red
-
Suspension Fork
SR Suntour XCR34 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, TNL, 120 mm
-
Rear Shock
N/A
Components
-
Headset
FSA Orbit NO.57E 1.5 ZS
-
Seatpost
TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL
-
Stem
Salsa Guide 31.8, 60 mm
-
Grips/Bar Tape
Salsa File Tread
-
Saddle
WTB Volt Medium, Steel, 142 x 265 mm
-
Handlebar
Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
Drivetrain
-
Front Derailleur
N/A
-
Rear Derailleur
Shimano Deore M6100 SGS
-
Cassette
Shimano Deore M6100 10–51t, 12-speed
-
Chain
Shimano Deore M6100
-
Crankset
Shimano MT501, 30t, Shimano BB52 BSA bottom bracket
-
Shifter
Shimano Deore M6100
-
Brake Calipers
Shimano MT200 OR Promax DSK-925
-
Rotors
Shimano RT10 Center Lock rotors (160 mm)
Wheels
-
Front Wheel
Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i40 32h 27.5" rim
-
Rear Wheel
Shimano MT401 Center Lock 10 x 141 mm QR hub, WTB ST i40 32h 27.5" rim
-
Front Tire
Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible)
-
Rear Tire
Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible)
Weight
*Specifications are subject to change without notice
Geometry
| Size |
X-Small |
Small |
Medium |
Large |
X-Large |
| A. Effective Top Tube |
568.2 |
590.5 |
614.8 |
643.5 |
670.1 |
| B. Stand Over |
678.6 |
698.3 |
737.2 |
769.1 |
798.7 |
| C. Reach |
395.0 |
416.0 |
439.0 |
465.0 |
489.0 |
| D. Stack |
605.6 |
610.2 |
614.9 |
624.2 |
633.4 |
| E. Total Seat Tube Length |
355.0 |
381.0 |
431.0 |
470.0 |
508.0 |
| F. Headtube Length |
95.0 |
100.0 |
105.0 |
115.0 |
125.0 |
| G. Headtube Angle |
68.0
|
68.0
|
68.0
|
68.0
|
68.0
|
| H. Seat Tube Angle |
74.0
|
74.0
|
74.0
|
74.0
|
74.0
|
| I. BB Drop |
58.0 |
58.0 |
58.0 |
58.0 |
58.0 |
| K. Chainstay Length |
439.0 |
439.0 |
439.0 |
439.0 |
439.0 |
| L. Fork Length Axle to Crown |
510.0 |
510.0 |
510.0 |
510.0 |
510.0 |
| M. Fork Offset |
46.0 |
46.0 |
46.0 |
46.0 |
46.0 |
| N. Wheelbase |
1100.6 |
1123.4 |
1148.3 |
1178.0 |
1205.8 |
| Crank Arm Length |
170.0 |
170.0 |
175.0 |
175.0 |
175.0 |
| Handlebar Width |
750.0 |
750.0 |
800.0 |
800.0 |
800.0 |
| Recommended Rider Height |
157.0 - 168.0 |
160.0 - 175.0 |
173.0 - 183.0 |
180.0 - 191.0 |
188.0 |
| Stem Length |
60.0 |
60.0 |
60.0 |
60.0 |
60.0 |
Measurements based on:
- OE spec 120mm 29/27.5+ suspension fork at 25% sag
- 27.5 x 2.8" tire measuring 722mm in diameter
- Standover is measured from vertically from ground to the top of the toptube, 50mm forward of the BB. Add 8-12.5mm (0.3-0.5") for 29 x 2.4-2.6" wheels/tires
