E-bike
- Charger
- Custom charger, 48V System w/ SL system charger plug
- UI/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
- Motor
- Specialized SL 1.2 Custom Rx Trail Tuned Motor
- Battery
- Specialized SL1-320, fully integrated, 320Wh
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Suspension
- Fork
- FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset

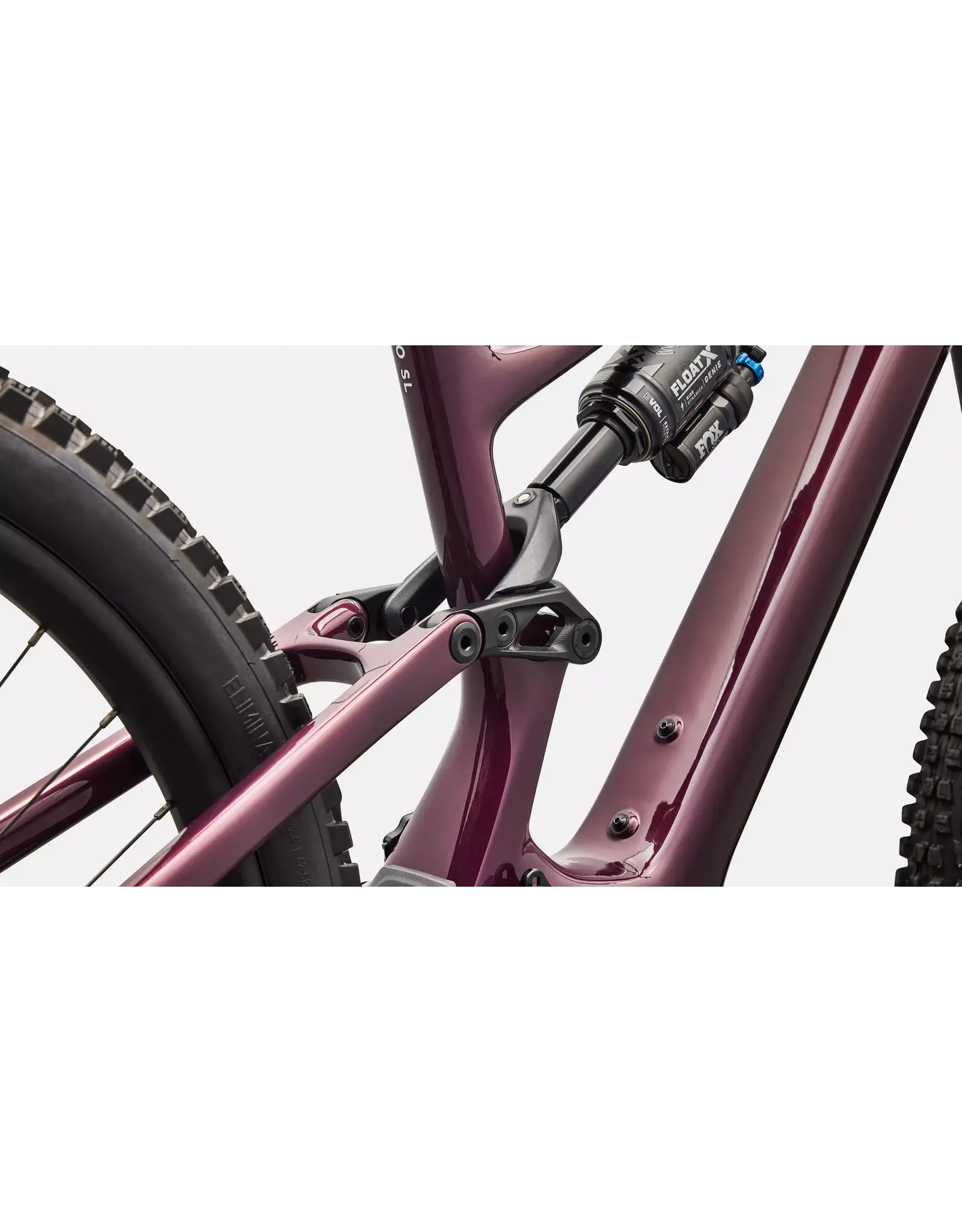

- Rear Shock
- FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever , LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Performance Elite 210x52.5mm
Brakes
- Front Brake
- Shimano Deore XT brake, 4 piston, Metal pad w/fin, 203mm rotor
- Rear Brake
- Shimano Deore XT brake, 4 piston, Metal pad w/fin, 203mm rotor
Drivetrain
- Chainrings
- Race Face alloy chainring, 104 BCD, 32T
- Crankset
- SRAM Alloy Crankset, 165mm, Dub interface
- Chain
- Shimano XT CN-M8100, 12-speed
- Shift Levers
- Shimano XT Di2
- Rear Derailleur
- Shimano XT Di2, 12-speed
- Cassette
- Shimano XT M8200, 12-speed, 10-51t
Wheels & tires
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4
- Rear Tire
- Eliminator, GRID GRAVITY casing, GRIPTON® T7/T9 compound, TLR, 27.5X2.4
- Inner Tubes
- Standard, Presta Valve
- Front Wheel
- Traverse Alloy 370, 29, 28H, alloy rim, 30mm inner width, 15x110mm, 6 bolt
- Rear Wheel
- Traverse Alloy 370, 27.5, 32H, alloy rim, 30mm inner width, DT Swiss 370 rear hub, 12x148mm, 6 bolt
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore
- Handlebars
- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
- Grips
- Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
- Seatpost
- PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm
- Saddle
- Specialized Bridge Comp with Mimic
Accessories
- SWAT
- SWAT CC steerer tube integrated tool with chain tool and link
Product details
- Product ID
- 221351
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 18.92 kg (41 lb, 11.4 oz)
- Weight Size
- S4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 165 | 165 | 165 | 165 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 175 | 200 | 200 | 200 |
| Stack | 609 | 617 | 626 | 635 | 645 | 654 |
| Reach | 405 | 425 | 445 | 470 | 495 | 525 |
| Head-Tube Length | 95 | 100 | 110 | 120 | 130 | 140 |
| Head-Tube Angle | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 |
| B-B Height | 343 | 348 | 348 | 348 | 348 | 348 |
| B-B Drop | -34 | -29 | -29 | -29 | -29 | -29 |
| Trail | 132 | 132 | 132 | 132 | 132 | 132 |
| Fork Length, Full | 560 | 570 | 570 | 570 | 570 | 570 |
| Fork Rake/Offset | 42 | 42 | 42 | 42 | 42 | 42 |
| Front-Center | 726 | 752 | 776 | 806 | 835 | 869 |
| Chain-Stay Length | 433 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1158 | 1184 | 1208 | 1238 | 1267 | 1301 |
| Top Tube Length, Horizontal | 560 | 582 | 604 | 631 | 659 | 691 |
| Bike Stand-Over Height | 727 | 763 | 766 | 767 | 773 | 778 |
| Seat-Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
